MODEL:BL56B56W

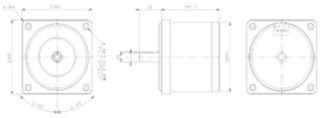

DIMENSION

CHARACTERISTICS

Classification 56W
Motor Type I/R TYPE BLDC MOTOR
Input Voltage DC 24V
Rated Torque 1.8kgf.cm
Rated Revolutions 2,200rpm
Rated Input 56W
Rated Output 41W
Rotation Direction CW/CCW
  • Direct DC Start Up Type (For Low Voltage)
  • Load :FAN, GEAR BOX PULLEY etc
  • Small Size, High Torque, High-Speed Revolutions
  • PGrade : IP42
  • APPLICATION
    ① DISPOSER, AIR CLEANER
    ② AIR BLOWER
    ③ FAN etc
