MODEL-BL80h350W

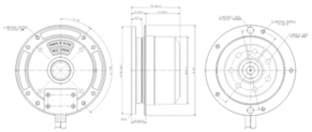

DIMENSION

CHARACTERISTICS

Classification 350W
Motor Type O/R TYPE BLDC MOTOR
Input Voltage Controller Single Phase AC 220V ~ 240V,
DC 280V ~ 340V
Motor DC 380V
Rated Torque 2.46kgf.cm
Rated Revolutions 1,200rpm
Rated Input 350W max
Rotation Direction CW/CCW
  • Direct AC Start Up Type
  • Application Fan : Backward Fan
  • Low-Consumption Input
  • IP Grade : IP42
  • APPLICATION
    ① FFU/EFU (FAN FILTER UNIT)
    ② AIR BLOWER
    ③ FAN etc
