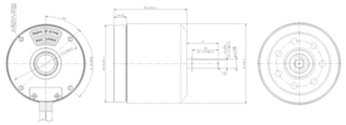

DIMENSION
CHARACTERISTICS
| Classification | 500W | |
|---|---|---|
| Motor Type | O/R TYPE BLDC MOTOR | |
| Input Voltage | Controller | Single Phase AC 220V ~ 240V, DC 280V ~ 340V |
| Motor | DC 380V | |
| Rated Torque | 3.59kgf.cm | |
| Rated Revolutions | 1,200rpm | |
| Rated Input | 500W max | |
| Rotation Direction | CW/CCW | |
